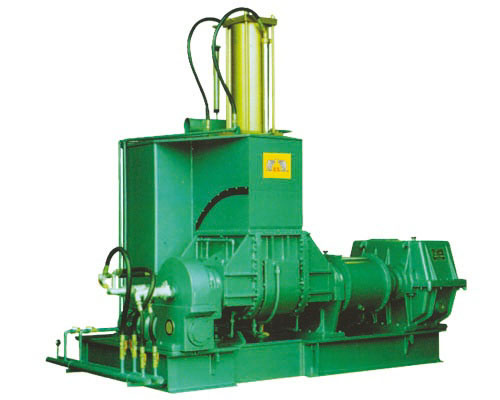

SNF series Rubber plastics pressure dispersion kneader



product description：

Features：

1、This mixer is anew and high-tech equipment developed for the mixing or high or Iow ratio expanding for the foaming rubber and plastics.

2、This mixer possesses the automatically constant-temperature water supply system and the high and Iow pressure control device of floating weight.

3、This mixer has the functions of the time sequence control and temperature sequence control.

4、According to the user’s needs,the front or rear of frame feeding may be optional.

5、According to the request of the user’s,the chamber heating mode can be provided with the steam heating,electric heating or oil heating.

6、This machine is the most ideal plastics mixing equipment to produce the foam plastics for sofa cushion,sofa back cushion,automobile cushions and footwear,etc.

7、This machine is suited for mixing of many plastics such as:EVA,PE,XPE,TPR,etc.

Ttem \ Mode		SNF-3×40	SNF-10×40	SNF-20×40	SNF-35×38	SNF-55×38	SNF-75×38	SNF-95×38	SNF-110×38
Total Volumc of mixing chanlber(L)		8	25	45	80	125	175	215	250
Working Volume of mixing chamber(L)		3	10	20	35	55	75	95	110
Driving motor power(KW)		7.5	18.5	37	55	75	110	132	185
Tilting motor power(KW)		0.55	1.5	1.5	2.2	2.2	4.0	5.5 液压站电机	7.5 液压站电机
Tilting angle(°)		140	140	140	140	140	140	130	140
Rotational speed of the rotor(front / rear)(r/min)		40/29	40/31	40/33	38/29	38/31	38/31	38/31	38/31
pressure of compressed air(MPa)		0.7-0.9	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
consumed capatity of compressed air(m/min)		≥0.3	≥0.5	≥0.7	≥0.9	≥1.0	≥1.3	≥1.5	≥1.6
Pressure of circulating water (MPa)		0.2-0.4	0.2-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4
Pressure of heating steam (MPa)		0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8
Oil heater power by electric heating (KW)		6-9	9-12	12-18	18-24	24-36	36-48	36-48	48-60
size	L mm	1670	2380	2355	3200	3360	3760	3860	4075
	W mm	830	1353	1750	1900	1950	2280	2320	2712
	H mm	1850	2113	2435	2950	3050	3115	3320	3580
Weight(kg)		1020	3000	4437	6500	7850	10230	11800	14200
